All Metal Long Range Cylindrical Inductive Proximity Switch (Cable Type) Model PRFD Series

All Metal Long Range Cylindrical Inductive Proximity Switch (Cable Type) Model PRFD Series

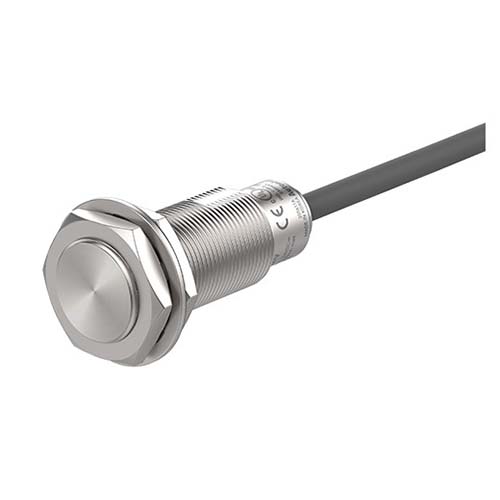

PRFD Series Cable Type Cylindrical Proximity Switch

(Has long sensing distance and full metal housing and proximity switch head made of 303 stainless steel. The robust sensor is highly resistant to deformation and corrosion and can be used in a variety of environments including food and beverage manufacturing, chemical and metal Processing industry. The metal sensor head has high impact and wear resistance, and the 360° annular status indicator allows the user to quickly identify the operating status from all angles. Proximity switches are available in Ø 8 mm, Ø 12 mm, Ø 18 mm and Ø 30 Available in millimeter sizes for easy installation in tight spaces and various other user settings.

Description

PRFD Series Cable Type Cylindrical Proximity Switches (with long sensing distance and all-metal housing and proximity switch head made of 303 stainless steel. The robust sensor is highly resistant to deformation and corrosion and can be used in a variety of environments including Food and beverage manufacturing, chemical and metal processing industries. The metal sensor head has high impact and abrasion resistance, and the 360° annular status indicator allows the user to quickly identify the operating status from all angles. Proximity switches are available in Ø 8 mm, Ø 12 Available in mm, Ø 18 mm and Ø 30 mm sizes for easy installation in tight spaces and a variety of other user settings.

main feature

  • High resistance to shock and abrasion caused by contact with workpiece or wire brush (sensor head/housing: stainless steel)
  • Reduce the risk of failure caused by aluminum shavings
  • Excellent noise immunity with dedicated sensor IC
  • Built-in surge protection circuit and overcurrent protection circuit
  • Running indicator (red LED), stable indicator (green LED)
  • 360° Ring Status Indicator (except PRFDT08-2DO-V)
  • Oil resistant cable
  • IP67 protection structure (IEC standard)
  • PRFD 1

    Full metal housing

  • PRFD 2

    Thick sensor head

  • PRFD 3

    Long sensing distance

  • PRFD 4

    Operation and stability indicators

  • PRFD 5

    Strong impact and abrasion resistance

  • PRFD 6

    Various protection circuits

  • PRFD 7

    Protection class

Available in a variety of sizes

The proximity switches are available in Ø 8 mm, Ø 12 mm, Ø 18 mm, Ø 30 mm size models, allowing installation in tight or limited spaces and a variety of other user settings.

  • Available in a variety of sizes

All-metal body for a variety of environments

The entire sensor, including the proximity switch head and housing, is made of 303 stainless steel for a robust design and high resistance to deformation, corrosion, and the spread of bacteria. These proximity switches are ideal for use in a variety of environments, including food and beverage manufacturing, chemical and metalworking industries.

  • food and drinks

    food and drinks

    The stainless steel 303 body minimizes the chance of germs spreading, and the one-piece design prevents cleaners or germicides from entering the proximity switch body.

  • Chemicals

    Chemicals

    Stainless steel 303 proximity switches are highly resistant to deformation and corrosion, making them ideal for chemical applications.

  • metalworking

    metalworking

    Proximity switches are highly shock and wear resistant in metalworking applications.

All-metal proximity switch heads provide shock and abrasion resistance

Metal proximity switch heads are highly shock and abrasion resistant, making proximity switches ideal for environments where the sensor head may be damaged or worn by workpieces or wire brushes.

  • 25635db6 2528 4d82 a7e7 d6b046068835
  • 1a3aa6db e7a1 4e06 839e e6c7bd8bfb7a

High resistance to magnetic field noise from welding current

The PRFD(W) series all-metal inductive proximity switches are highly resistant to magnetic field noise generated by welding currents.

  • 1a5332e3 84b9 4fbb b324 61b822f02d6a
  • 4f95a3a1 ff58 4c5f 8a50 04b4a07d2666
  • b8027ff8 3464 496f b83b 82258c2daa33
  • 131c4e04 e14f 41e2 bd67 71bdf58bf48d
  • Reduce the risk of failure caused by aluminum shavings

    These proximity switches are designed to minimize the risk of failure due to aluminum chips, providing high performance in environments with metal chips.

    586978c0 bad3 403d 9299 64be13c38232
  • Oil Resistant (PVC) Cable

    Robust oil-resistant cables allow the proximity switch to be installed in environments with hydraulic or cutting fluids.

    470de663 cbb2 4b6b 960c f10cbf3694ad
  • Ring Status Indicator

    The 360° ring-shaped running indicator (red LED) and stability indicator (green LED) allow users to quickly identify the running status from all angles.

    Except PRFDT08-2DO-V model

    81dee250 28f3 4013 b16c cb9fa383908b
  • IP67 protective structure

    IP67 protective construction provides reliable and trouble-free operation even in wet or dusty environments.

    8ae1b509 8421 4740 a659 df2b97f5c319

Application

  • Automate car manufacturing processes

    Automating Automotive Manufacturing Processes (Video)

    Automated vehicle manufacturing processes – stamping process/welding process/painting process

  • Meat Processing Conveyors

    Meat Processing Conveyors

    All-metal inductive proximity sensor for detecting the position of food trays in meat processing lines.

The principle of timer counter table Our performance

Rotary encoderprincipleOur performance

Photoelectric switch principle Our performance

Principle of safety grating | Our performance

Proximity switch principle Our performance

Principle of digital display meter Our performance

Stepper Motor &Drive principle Our performance

The principle of the panel meter Our performance

Principle of Safety Light Curtain Our performance



proximity switch(English:proximity sensor) also calledproximity sensor, which is a device that can detect the presence of nearby objects without contactsensor.

Proximity sensors typically emitelectromagnetic fieldorElectromagnetic radiationbundle (e.g.infrared) and observeelectric fieldOr the change of the return signal to realize the function. The object that can be detected is called the target of the proximity switch. Different types of proximity switches have different goals, such asCapacitive Proximity SwitchorPhotoelectric switchpossible detectionplastictarget, andInductive proximityswitchCan only detect metal targets.

Sensors have a "nominal range" defined by their design, the maximum distance they can detect. Some sensors have the ability to adjust within the nominal range and to report the detection distance classification.

Therefore, the proximity switch has no mechanical parts, and there is no physical contact between the sensor and the object being sensed, resulting in high reliability and long service life.

Smartphones or similar mobile devices are often equipped with proximity switches. The device can wake up from sleep mode when a target is present within the nominal range. If the proximity sensor's target persists, the device can also ignore it and go back to sleep. A common design is that when using a smartphone to make a call, the proximity switch will detect the presence of the target and treat it as if it is placed in the ear, at which point the touchscreen will be temporarily turned off to avoid accidental operation.[1]Proximity sensors are also used for vibration monitoring of some mechanical devices.

Proximity switches tuned to ultra-short distances can also be used as atact switch.
